Heat exchanger segment IFV

Low-quality seawater, Large capacity, Cold energy recovery..., making what you want possible

An intermediate fluid vaporizer (IFV) is an LNG vaporizer that can use even low-quality seawater as a heat source by using titanium tubes. The risk of freezing seawater is eliminated by using propane intermediate fluid. In addition, various cold energy recovery methods are available and have many successful experiences.

Features

Sustainable use of LNG cold energy

Enable LNG vaporization and its cold energy recovery without creating CO2 emissions from combustion.
Enable cryogenic power generation by intermediate-fluid Rankine cycle.
Enable air conditioning and gas turbine intake air cooling by using industrial water as a heat medium.

Existing Applications and Applicable Ranges

Delivery track record of more than 60 units also supports cold energy recovery

＜Existing Applications＞

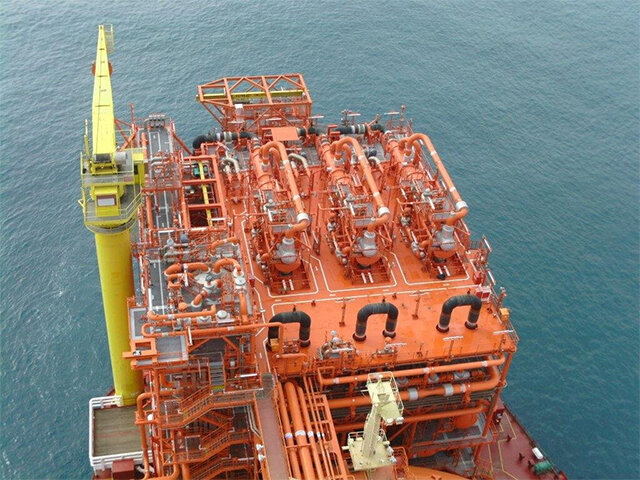

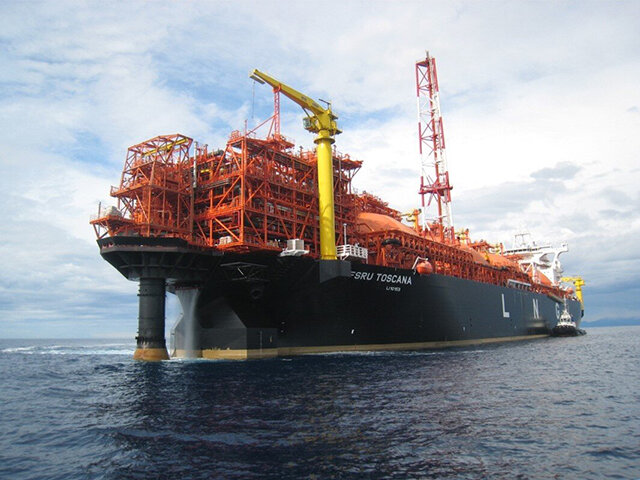

LNG regasification terminal: LNG vaporizer (Onshore and FSRU)
Cold energy recovery: Cryogenic power generation, gas turbine intake air cooling, air conditioning, cooling water, and more

＜Applicable Ranges＞

Temperature: -260 to 65°C
Pressure: 150 Bar(g) max.
Fluids: LNG, liquid hydrogen, and other fluids non-corrosive to stainless steel

Structure

Heat exchange process utilizing evaporation and condensation of intermediate fluid

Heat transfer tubes made of titanium prevent erosion and corrosion even in areas where seawater qualities are poor.

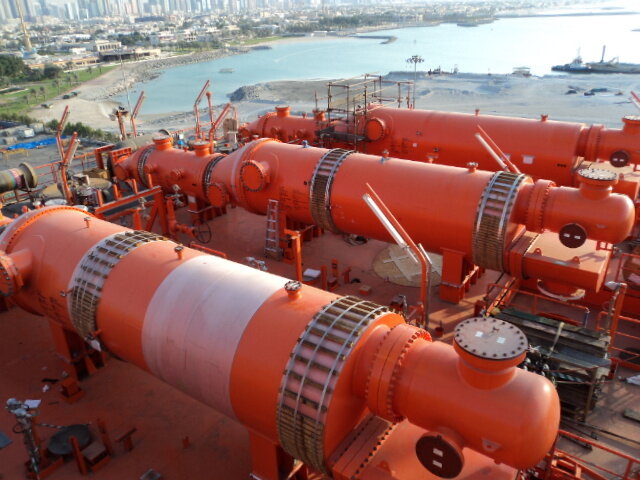

IFV is composed of three heat exchangers (E-1, E-2, and E-3) in one module.
See the detailed structure illustration below.

After-Sales Service

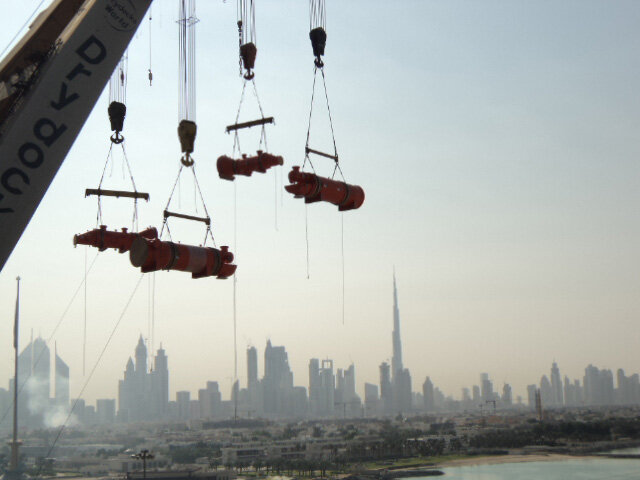

Upon the customer's request, we dispatch experienced supervisors around the world to provide advisory services for installation and pre-commissioning.
Basically, the recommended maintenance is only jet water cleaning of the seawater system every year, and it can be easily handled by users.
